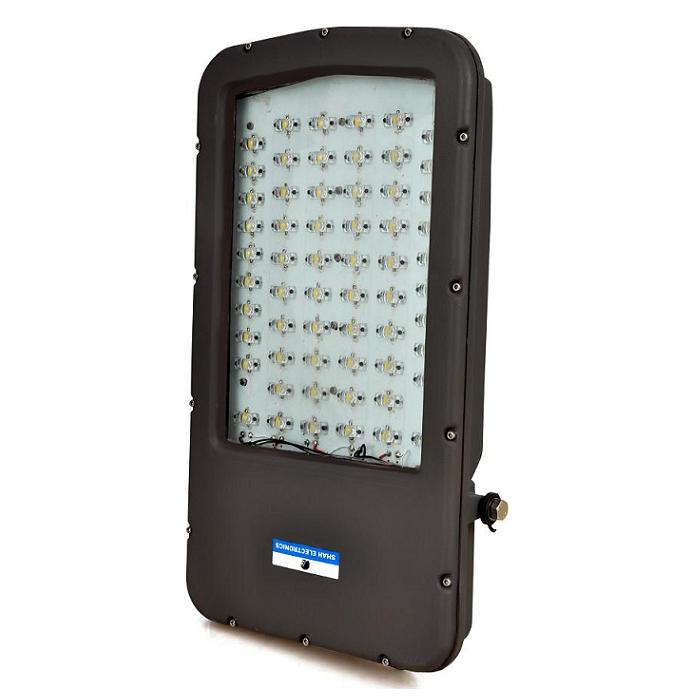

75W Solar LED Street Light Fixture

Item Code : SESTL-SLED-7560

Features

  • Designed and developed as per European Standards EN-60598-1,EN-60598-2-3, EN-60598-2-4 & EN-60968
  • Instant start, No flicker, No noise, Low work temperature, Low power consumption.
  • Aluminium Die Cast Body Fixture - Eliminates Problem of Rusting.
  • Optimal thermal design to provide extended life to LEDs.
  • Bug Free Light - UV Free LED Light – Eliminating Bug problems – Reduces frequent glass cleaning expenses.
  • Short Pay Back Period Saving more than 80% Power than traditional fixtures.

Specifications

  • Operating Voltage 12VDC +/- 10%
  • Input Power 75Watt +/- 10%
  • Ingress Protection IP-65
  • Lighting Efficiency 100 ~ 120 lm/W.
  • LED Type 1.1W - 60 nos.
  • Color Rendering Index >= 75
  • Color Temperature 6500K +/- 500K ( White)
  • Circuit Efficiency >= 85%.
  • Protection Gear Under voltage / Over Voltage Protection
  • Body Aluminium Die Cast Body Fixture
  • Dimension (L x W x H in mm.) 600 x 370 x 80
  • Recommended Mounting Height 25 Ft. – 30 Ft.
  • Recommended Battery Size 12 VDC / 300 Ah ( 20% DDC Prot.-2 – Days Autonomy)
  • Recommended Solar Panel Size 12 VDC / 240 W ( IEC – 61215 ; IEC – 61730 , -2 )
  • Recommended Solar Charge Controller 12 VDC / 20 Amps
