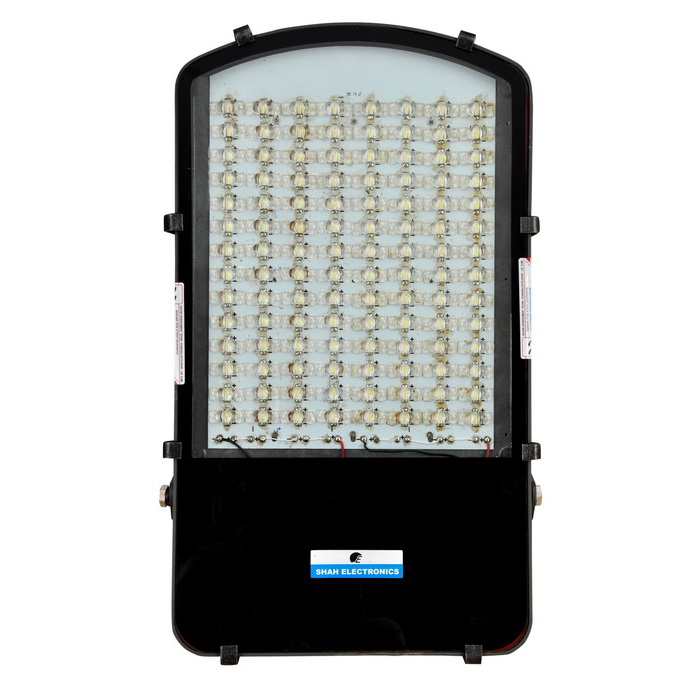

150W LED Street Light Fixture

Features

• Designed and developed as per European Standards EN-60598-1,EN-60598-2-3, EN-60598-2-4 & EN-60968
• Instant start, No flicker, No noise, Low work temperature, Low power consumption.
• Aluminium Die Cast Body Fixture - Eliminates Problem of Rusting.
• Optimal thermal design to provide extended life to LEDs.
• Bug Free Light - UV Free LED Light – Eliminating Bug problems – Reduces frequent glass cleaning expenses.
• CE Marking Approved as per European Standards - for further details please refer to CE Marking Certificate.
• Short Pay Back Period Saving more than 80% Power than traditional fixtures.

Specifications

• Operating Voltage 110VAC ~ 270VAC +/- 10%
• Operating Frequency 50/60 Hz +/- 4%
• Input Power 150Watt +/- 10%
• Power Factor >= 0.95 PF
• Total Harmonic Distortion <= 10 %
• Ingress Protection IP-65
• LED Efficacy 120 ~ 140 lm/W.
• LED Type 1.2W - 112 nos.
• Color Rendering Index >= 70 / >= 80
• Color Temperature 5000K – 7000K / 3000K – 5000K
• Voltage Tolerance Range 90 VAC to 300 VAC
• Circuit Efficiency >= 85%.
• Body Aluminium Die Cast Body Fixture
• Dimension ( L x W x H in mm.) 670 x 305 x 85
• Recommended Mounting Height 27 Ft. – 30 Ft.
